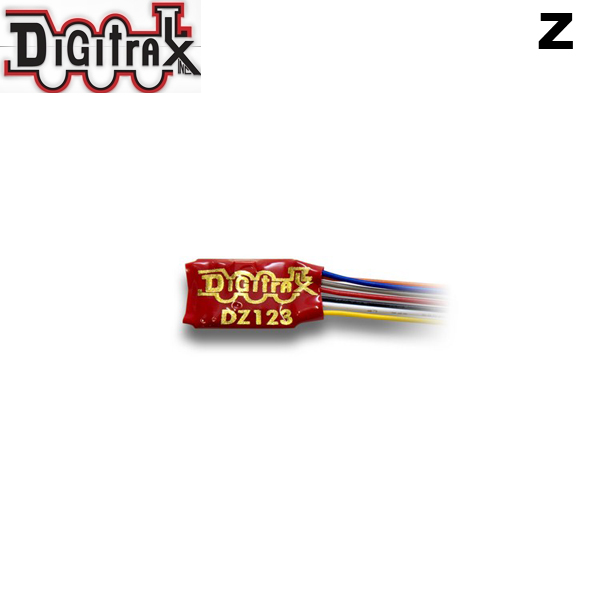

DZ123 1 Amp Economy Wired Decoder, 2 Functions, Z Scale

Features:

Digitrax LocoMotion^® System
Your locomotives look like the real thing. The Digitrax LocoMotion^® System makes them run like the real thing, too!

·         Torque Compensation for smooth as silk silent operation.

·         128 Speed Step operation (14 or 28 steps can also be used).

·         Momentum with acceleration and deceleration.

·         Normal Direction of Travel is user selectable.

·         Switching Speed feature for easier and faster access to yard speeds.

·         3 Step Speed Tables set start, mid and max voltage for custom control.

·         28 Step Speed Tables with 256 level resolution for precise control.

·         SuperSonic™ motor drive for silent operation.

·         FX³ Function outputs for prototypical lighting effects and on/off control.

·         Constant Brightness Lighting with directional or independent control.

·         Realistic Effects like Ditch lights, Mars lights, strobes, and many more.

·         FX³ & Standard Function Qualifiers operate functions based on direction,
F0 on or off, direction and F0, and whether loco is moving.

·         Function Remapping for custom function setup.

·         Master Light Switch turns off all lights & functions with one keystroke.

·         Decoder Lock equipped.

·         Transponder equipped ready for transponding on your layout.

·         All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.

·         Decoder Reset CV with or without speed table reset.

·         Motor Isolation Protection prevents damage to your decoder.

·         Basic, Advanced & UniVersal Consisting

·         2 Digit and 4 Digit Addressing.

·         Works with most DCC-ready Z, N, and HO scale locomotives up to 18V track voltage.  UP6Z can be used to drop track voltage.

·         DCC Compatible

·         FCC Part 15, Class B RFI complian

Note: DZ123 does not have Scaleable Speed Stabilization (Back EMF)

Specifications

Current Rating-Motor

Size

Installation

Function Outputs



Function Type

Features
